中高音钛膜同轴单元，声音瞬态响应非常好
水平 80°-120°/ 垂直 50° 渐变的号角设计，
使整个声场的均匀度很好， 与小型线阵的效果相当。
最大声压 138dB 的点声源音箱， 覆盖范围可以达
20-25 米， 同样可替代小型线阵列音箱。
| MG600音箱 | |
|---|---|
| 频率响应范围 | 300Hz–18KHz |
| 功率 | 380W |
| 阻抗 | 8Ω |
| 覆盖角度 | 水平80°–120°（渐变），垂直50° |
| 最大声压 | 138dB |
| 单元组成 | 高音 65mm 音圈 + 中音 100mm 音圈 同轴式钕磁中高音单元（内置分频） |
| 产品尺寸(高×宽×深) | 561×561×550mm（不含100mm机脚） |
| 净重 | 27Kg |
| MG380B音箱 | |
|---|---|
| 频率响应范围 | 50Hz–1KHz |
| 功率 | 1400W |
| 阻抗 | 8Ω |
| 最大声压 | 133dB |
| 单元组成 | 1个15英寸88mm音圈钕磁低音单元 |
| 产品尺寸(高×宽×深) | 455×561×550mm（不含100mm机脚） |
| 净重 | 26Kg |
| 超低音 | |
|---|---|
| 频率响应范围 | 30Hz–200Hz |
| 功率 | 4000W |
| 阻抗 | 4Ω |
| 最大声压 | 140dB |
| 单元组成 | 2个18英寸100mm音圈低音单元 |
| 产品尺寸(高×宽×深) | 1269×561×780mm |
| 净重 | 110Kg（含功放周边） |
| 箱体材料 | 18mm桦木板 |
| 箱体喷漆 | 黑色磨砂喷漆 |
| 网罩 | 带防尘网布的六角穿孔钢网 |
| 硬件 | 音箱两侧提手，橡胶脚柱 |
| 功放 | |
|---|---|
| 输出功率 | 立体声 8Ω：4×1600W 4Ω：4×2650W 桥接 16Ω：2×3200W 8Ω：2×5300W 4Ω：2×7000W |
| 保护 | 短路保护、过载保护、超温保护 |
| 信号输入 | XLR |
| 线序 | 1接地, 2热（+）, 3冷（-） |
| 电源电压 | AC 220V~50-60Hz |
| 音箱控制器 | |
|---|---|
| DSP | FIR滤波器 |
| 清单 | |
|---|---|
| ESS MG600音箱 | 1只 |
| ESS MG380B音箱 | 1只 |
| ESS LS218AMP 音箱 | 1只 |
| ESS TANG10000.4功放 | 1台 |
| ESS HD8音箱控制器 | 1台 |
| ESS TS-8时序器 | 1台 |

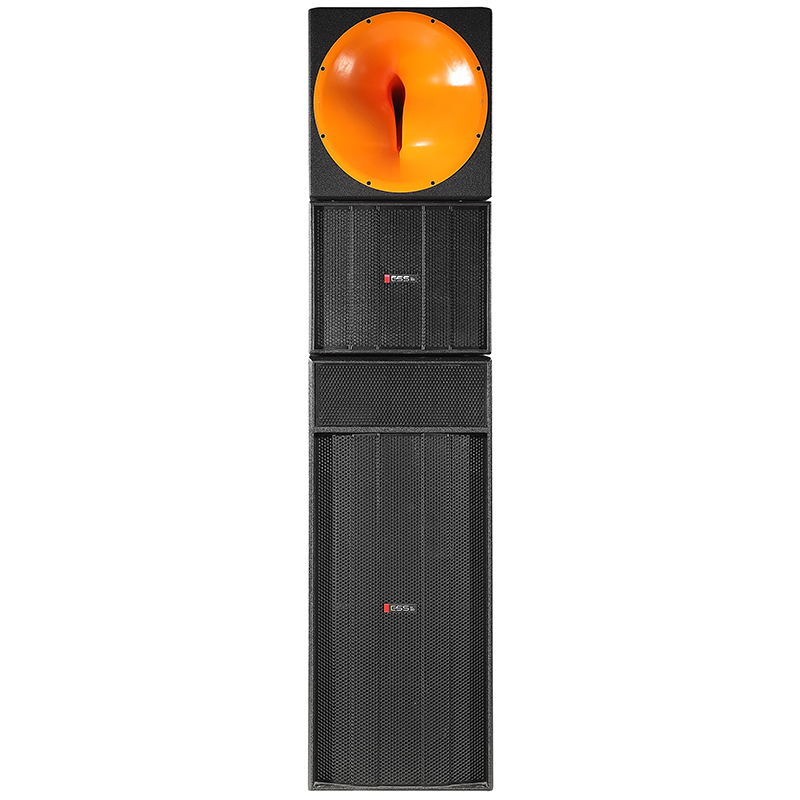

LS218AMP-MG
Open Active Speaker
FEATURES
A mid-high coaxial of titanium diaphragm with excellent sound transient response.
A horizontal 80°-120°and vertical 50°gradient horn design ensures more even sound distribution over all areas, comparable to the performance of small line array systems.
A point source loudspeaker with a Max. SPL of 138dB can have a coverage of up to 20-25 meters, and also can be used as a small line array system.
MG600 Loudspeaker
Frequency Response | 300Hz-18KHz |
Power | 380W |
Nominal Impedance | 8Ω |
Coverage | Hor：80-120° (gradient), Ver：50° |
Max. SPL | 138dB |
Components | 65mm (HF) voice coil + 100mm (MF) voice coil |
Dimension(HxWxD) | 561mm×561mm×550mm |
Net Weight | 27Kg |
MG380B Loudspeaker
Frequency Response | 50Hz-1KHz |
Power | 1400W |
Nominal Impedance | 8Ω |
Max. SPL | 133dB |
Components | 1x15” 88mm voice coil neodymium LF driver |
Dimension(HxWxD) | 455mm×561mm×550mm |
Net Weight | 26Kg |
Subwoofer
| Frequency Response | 30Hz-200Hz |
Power | 4000W |
Nominal Impedance | 4Ω |
Max. SPL | 140dB |
Components | 2x18” 100mm voice coil LF driver |
Dimension(HxWxD) | 1269mmX561mmX780mm |
Net Weight | 110Kg (including amplifier peripheral equipment) |
Box Material | 18mm birch plywood |
Box Painting | Black matte spray paint |
Grille | Hexagonal perforated grille with anti rubbing mesh |
Hardware | Handles on both sides of the speaker; Rubber footing |
Power Amplifier
Output Power | Stereo | 8Ω | 4x1600W |
4Ω | 4x2650W | ||
Bridge | 16Ω | 2x3200W | |
8Ω | 2x5300W | ||
4Ω | 2x7000W | ||
Protect | Short-circuit, overload, overheat | ||
Signal Input | XLR | ||
Wire Sequence | 1 grounded, 2 hot (+), 3 cold (-) | ||
Power Supply | AC 220V~50-60Hz | ||
Speaker Controller
| DSP | FIR Filter |
List
| ESS MG600 Loudspeaker 1pc |
ESS MG380B Loudspeaker 1pc |
ESS LS218AMP Speaker 1pc |
ESS TANG 1000.4 power amplifier 1pc |
ESS HD8 Controller 1pc |
ESS TS -8 Sequencer 1pc |
