ENT系列

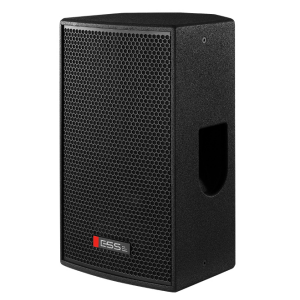

ENT 10F
产品详情
PDF下载
| 技术指标： | |
| 技术参数 | ENT 10F |
| 单元组成 | 1×65mm音圈钕磁高音单元 1×10英寸76mm音圈钕磁低音单元 |
| 推荐功率 | 960W |
| 阻抗 | 8Ω |
| 频率响应 | 60Hz-18KHz |
| 标称覆盖角度 | 水平90°-150°(渐变),垂直50°号角可以作90°转动安装 |
| 灵敏度(1W/1M) | 98dB |
| 最大声压(1M) * | 127dB |
| 接线 | 2×Neutrik NL-4接线±1 |
| 安装方式 | 吊装或支撑杆(箱体埋有吊装用M8螺母) |
| 尺寸(宽×高×深) | 316mm×566mm×325mm |
| 重量 | 16Kg |
| Technical Specifications: | |
| Technical Parameters | ENT 10F |
| Components | 1×65mm voice coil neodymium HF driver 1×10”76mm voice coil neodymium LF driver |
| Recommended Amplifier | 960W |
| Nominal Impedance | 8Ω |
| Frequency Response | 60Hz-18KHz |
| Coverage | Hor:90-150°(gradient) Ver:50° The horn can be installed by 90°rotation. |
| Sensitivity(1W/1M) | 98dB |
| Max.SPL(1M) * | 127dB |
| Connectors | 2×Neutrik NL-4;±1 |
| Installation manner | Flying or support pole(Embedded with M8 nuts for flying.) |
| Dimension (W×H×D) | 316mm×566mm×325mm |
| Weight | 16Kg |
